Teramosa

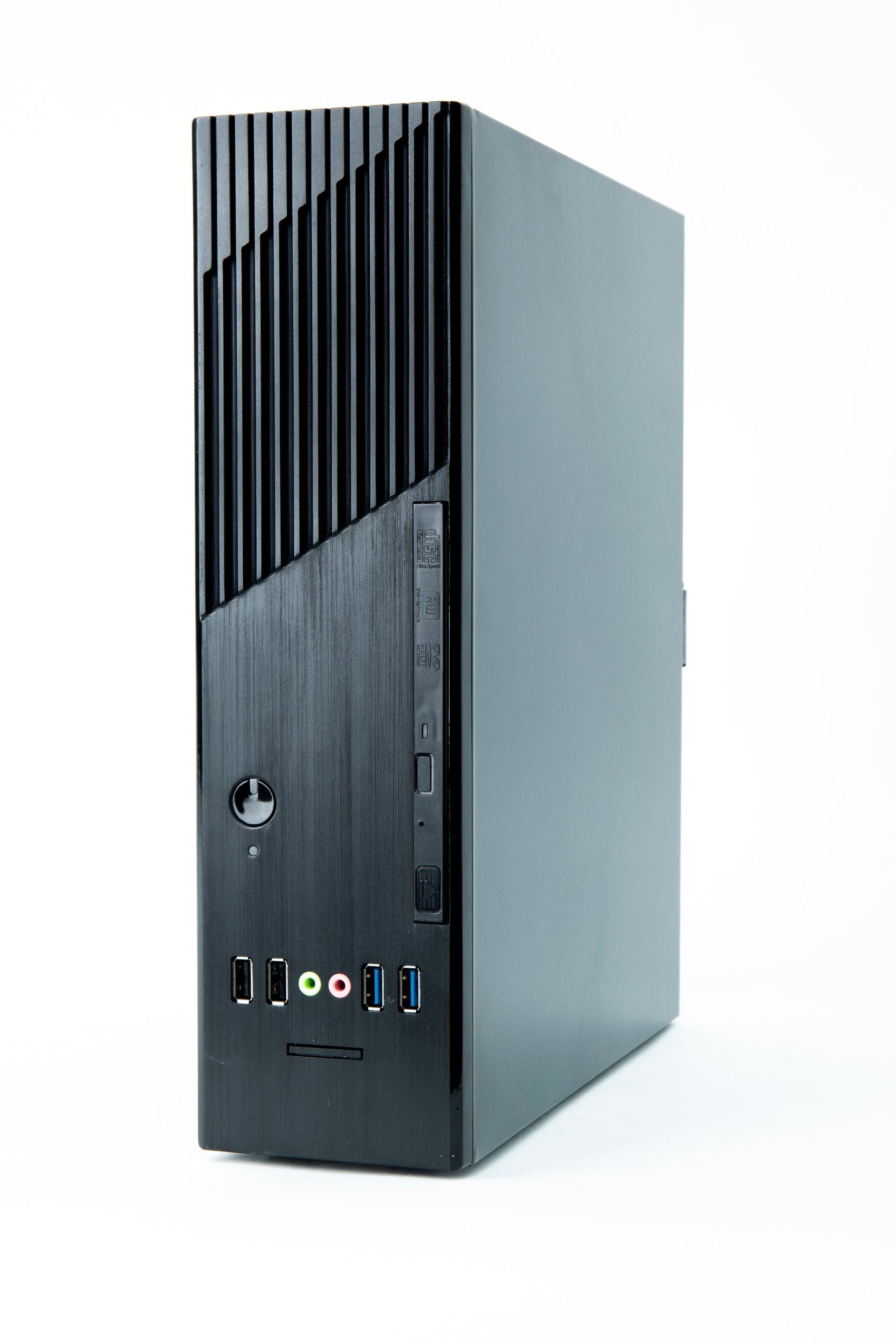

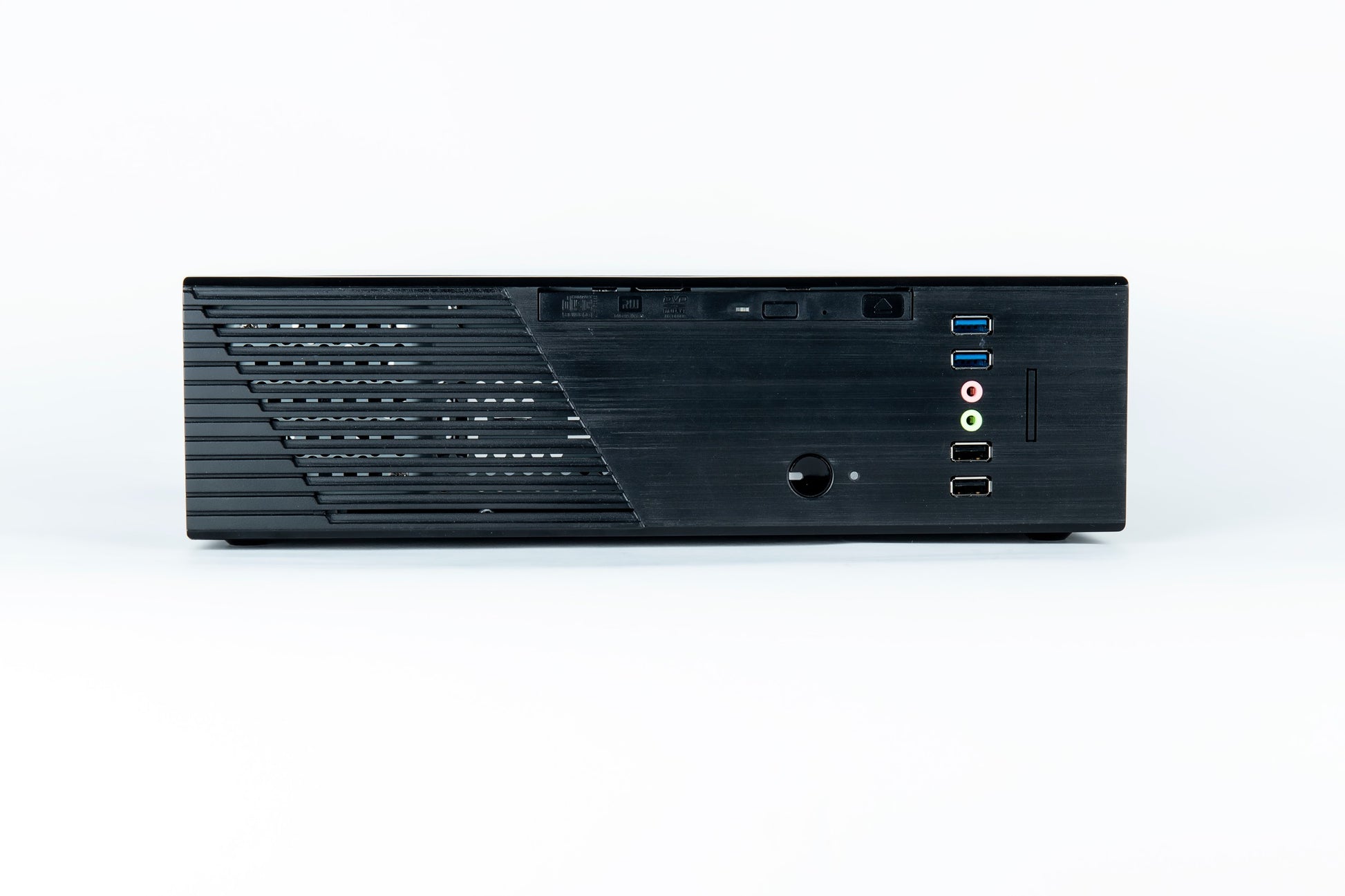

YY-7702 Series-micro ATX Slim Desktop

$100.00 USD
$100.00 USD
Sale Sold out

YY-7702 is tiny but capable of containing essential devices, including a set of ODD, HDD, and SSD.

The modern front panel with future-proof FPIO configuration increases its compatibility. With the complete safety solution support, it can be widely applied in various scenarios, especially for business and commercial purposes.



Model YY-7702
Case Dimension (structure)
Case Dimension (with bezel)		 325 W x 263 D x 90 H mm(7.69L)
325 W x 273 D x 90 H mm(7.99L)
Motherboard configuration Standard Micro ATX 9.6”x9.6”, mini ITX
Drive configuration
  • Cage A
    • Slim ODD (T9.5mm, screw-less)
    • 1 x 3.5” HDD (screw-less) or 1 x 2.5” HDD (screw)
    • 1 x 2.5” HDD (screw-less) + 1 x 2.5” HDD (screw)
CPU Clearance Zone Cage A: 41mm
Expansion slots and ports Tool-less 4 low profile PCI slot
Front panel control Power switch, Power LED, HDD LED
USB2.0 / Audio (USB3.0 option) /Type C
SD Card Reader (option)
Materials Recyclable materials; RoHS compliant
ABS, SGCC t0.6 Sheet Metal
Emissions Designed to meet FCC class
Color Black
Power Supply (option) TFX
Optional Kits Internal speaker with AMP board
Chassis Intrusion Switch
60x60x10mm Fan (front-mounted)
